寇客智能蝶形压力控制阀门，利用中间阀板快速和精确动作，阀板在0~90°旋转，根据集成在控制单元的两个压力传感器回馈的实测数字信号，通过PID 算法计算阀板的角度，起到控制管道内气体流导，从而精准控制系统的压力，稳定在工艺需要的范围。冠客产品位置精准度高，控压稳定好，响应速度快，

阀体单元和驱动单元集成安装，结构紧凑，同时也便于拆卸维护，阀门能够抵抗工艺中的腐蚀性、粉尘等严苛制程物的影响，产品能够应用于CVD、ALD 等严苛工艺中。阀门配置双传感器供电，具有双路数字量输入接收，拥有阀门配置文件的导入和导出功能，内置稳定的压力控制算法，快速学习模式及免自

适应学习模式。支持各种通讯模式和可以提供客制化服务。

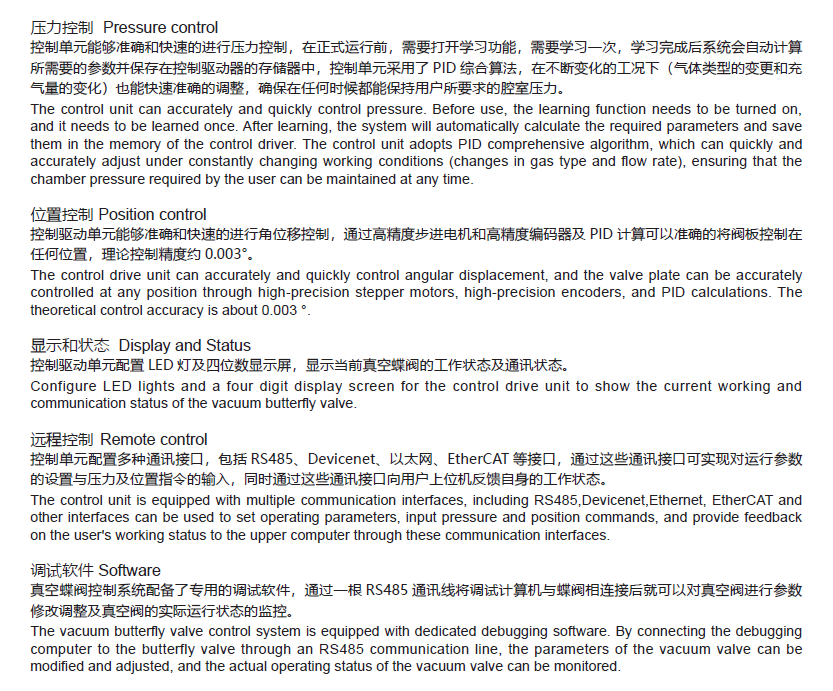

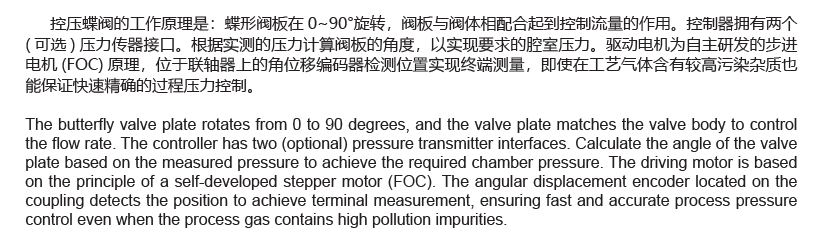

    The SCOQ intelligent butterfly pressure control valve utilizes the fast and precise action of the valve plate, which rotates from 0 to 90 degrees. Based on the measured digital signals feedback from two pressure sensors integrated in the controller, the angle of the valve plate is calculated through PID

algorithm to control the gas flow in the pipeline, thereby accurately controlling the system pressure and stabilizing it within the required range of the process. SCOQ products have high positional accuracy, stable pressure control, fast response speed, integrated installation of valve body unit

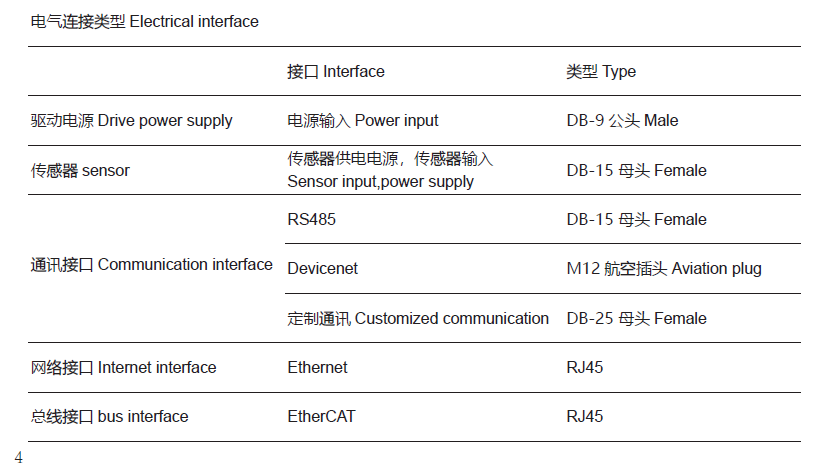

and drive unit, compact structure, and easy disassembly and maintenance. The valve can resist the influence of harsh process materials such as corrosiveness and dust in the process, and the product can be applied to harsh processes such as CVD and ALD. The valve is equipped with dual sensor power supply, dual digital input reception, import and export functions of valve configuration files, builtin stable pressure control algorithm, fast learning mode and non adaptive learning mode. Supports various communication modes and can provide customized services.
